Vector

Oodle integrates seamlessly with Vector. By adding Oodle as a sink in your Vector configuration, you can start sending logs directly to your Oodle instance.

Configuration

To configure Vector to send logs to Oodle, you'll need the following values:

• OODLE_INSTANCE: Your Oodle instance ID. Go to Settings icon -> API Keys page in your Oodle UI to find out. (Oodle UI links: ap1, us1)
• OODLE_API_KEY: Your Oodle API key for authentication. Go to Settings icon -> API Keys in your Oodle UI to choose an appropriate key. (Oodle UI links: ap1, us1)

Add the following configuration to your Vector configuration file:

YAML

sinks:
  oodle:
    type: http
    method: post
    inputs: [ <sources...> ]
    uri: https://<OODLE_INSTANCE>-logs.collector.oodle.ai/ingest/v1/logs
    encoding:
      codec: json
    compression: gzip
    request:
      headers:
        X-OODLE-INSTANCE: "<OODLE_INSTANCE>"
        X-API-KEY: "<OODLE_API_KEY>"
      retry_attempts: 3
      timeout_secs: 60

TOML

[sinks.oodle]
type = "http"
method = "post"
inputs = [ "<sources...>" ]
uri = "https://<OODLE_INSTANCE>-logs.collector.oodle.ai/ingest/v1/logs"
compression = "gzip"
encoding.codec = "json"
request.retry_attempts = 3
request.timeout_secs = 60
request.headers.X-OODLE-INSTANCE = "<OODLE_INSTANCE>"
request.headers.X-API-KEY = "<OODLE_API_KEY>"

JSON

{
  "sinks": {
    "oodle": {
      "type": "http",
      "method": "post",
      "inputs": [ "<sources...>" ],
      "uri": "https://<OODLE_INSTANCE>-logs.collector.oodle.ai/ingest/v1/logs",
      "encoding": {
        "codec": "json"
      },
      "compression": "gzip",
      "request": {
        "headers": {
          "X-OODLE-INSTANCE": "<OODLE_INSTANCE>",
          "X-API-KEY": "<OODLE_API_KEY>"
        },
        "retry_attempts": 3,
        "timeout_secs": 60
      }
    }
  }
}

Steps

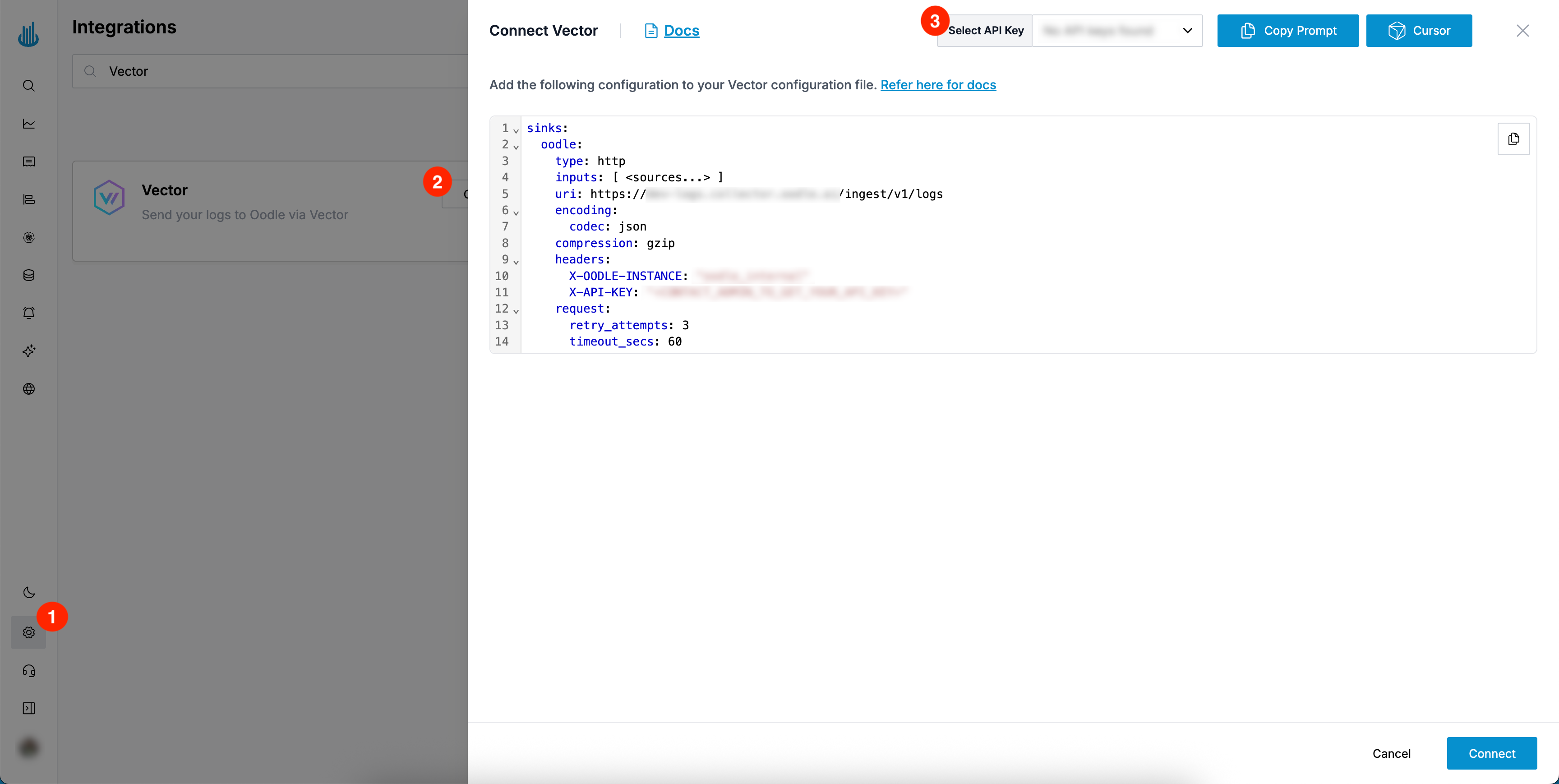

You can find the Query Metrics commands and steps by doing the following:

1. Login to the Oodle UI, then navigate to Settings page
2. Click on the Vector tile
3. Choose an appropriate API key from the list on top of the drawer

Add the configuration specified in the drawer to your Vector configuration file

Collect Vector internal metrics (optional)

Monitor Vector itself (throughput, buffer usage, component errors) by collecting its internal metrics. The internal_metrics source gathers them. Push them straight to Oodle, or expose a /metrics endpoint for your own Prometheus scraper to pull. See the Vector internal_metrics docs.

Push to Oodle

The prometheus_remote_write sink pushes straight to Oodle. It sends the API key as a bearer token, which Oodle accepts.

YAML

sources:
  internal_metrics:
    type: internal_metrics
    scrape_interval_secs: 30
sinks:
  oodle_metrics:
    type: prometheus_remote_write
    inputs: [ internal_metrics ]
    endpoint: https://<OODLE_INSTANCE>.collector.oodle.ai/v1/prometheus/<OODLE_INSTANCE>/write
    compression: snappy
    auth:
      strategy: bearer
      token: "<OODLE_API_KEY>"

TOML

[sources.internal_metrics]
type = "internal_metrics"
scrape_interval_secs = 30

[sinks.oodle_metrics]
type = "prometheus_remote_write"
inputs = [ "internal_metrics" ]
endpoint = "https://<OODLE_INSTANCE>.collector.oodle.ai/v1/prometheus/<OODLE_INSTANCE>/write"
compression = "snappy"
auth.strategy = "bearer"
auth.token = "<OODLE_API_KEY>"

JSON

{
  "sources": {
    "internal_metrics": {
      "type": "internal_metrics",
      "scrape_interval_secs": 30
    }
  },
  "sinks": {
    "oodle_metrics": {
      "type": "prometheus_remote_write",
      "inputs": [ "internal_metrics" ],
      "endpoint": "https://<OODLE_INSTANCE>.collector.oodle.ai/v1/prometheus/<OODLE_INSTANCE>/write",
      "compression": "snappy",
      "auth": {
        "strategy": "bearer",
        "token": "<OODLE_API_KEY>"
      }
    }
  }
}

Expose for scraping

The prometheus_exporter sink serves metrics at http://<vector-host>:9598/metrics. Point your Prometheus compatible scraper there and remote-write to Oodle.

YAML

sources:
  internal_metrics:
    type: internal_metrics
    scrape_interval_secs: 30
sinks:
  oodle_metrics_exporter:
    type: prometheus_exporter
    inputs: [ internal_metrics ]
    address: 0.0.0.0:9598

TOML

[sources.internal_metrics]
type = "internal_metrics"
scrape_interval_secs = 30

[sinks.oodle_metrics_exporter]
type = "prometheus_exporter"
inputs = [ "internal_metrics" ]
address = "0.0.0.0:9598"

JSON

{
  "sources": {
    "internal_metrics": {
      "type": "internal_metrics",
      "scrape_interval_secs": 30
    }
  },
  "sinks": {
    "oodle_metrics_exporter": {
      "type": "prometheus_exporter",
      "inputs": [ "internal_metrics" ],
      "address": "0.0.0.0:9598"
    }
  }
}
