Provisioning (Git Sync)

Provisioning lets you sync Oodle resources bidirectionally with a Git repository. Changes made in Oodle are automatically committed to Git, and changes pushed to Git are applied back to Oodle.

This enables infrastructure-as-code workflows for your observability configuration — version-controlled dashboards, alerts, monitors, and more.

Supported Resources

Resource Type	Description
Dashboards	Grafana dashboards and folders
Monitors	Alert monitors
Notifiers	Notification channels (Slack, PagerDuty, etc.)
Notification Policies	Alert routing rules
Muting Rules	Alert suppression rules
Schedules	Muting schedules
Log Transforms	Log transformation pipelines
Log Metrics	Metrics derived from logs
Synthetic Monitors	Synthetic monitoring checks
AI Skills	AI assistant skills

How It Works

1. Outbound sync (Oodle → Git): When a resource changes in Oodle, the syncer serializes it to JSON and commits it to your repository with an AI-generated commit message describing the change.

2. Inbound sync (Git → Oodle): When files change in the repository (via direct commit or merged PR), the syncer detects the changes and applies them to Oodle.

Sync runs on a configurable polling interval (default: 5 minutes). You can also enable webhooks for real-time sync when changes are pushed to GitHub.

Repository Structure

Resources are stored in a configurable subdirectory of your repository. Each resource type has its own folder:

<directory>/
  dashboards/
    FolderName/
      my-dashboard.json
    another-dashboard.json
  monitors/
    019d269f-002f-772f-b787-0ecfb7f17273.json
  alerts/
    my-alert.json
  log_transforms/
    transform-id.json
  log_metrics/
    metric-id.json
  synthetic_monitors/
    monitor-id.json
  ...

Dashboard folders are preserved as directories, matching the folder hierarchy in Grafana.

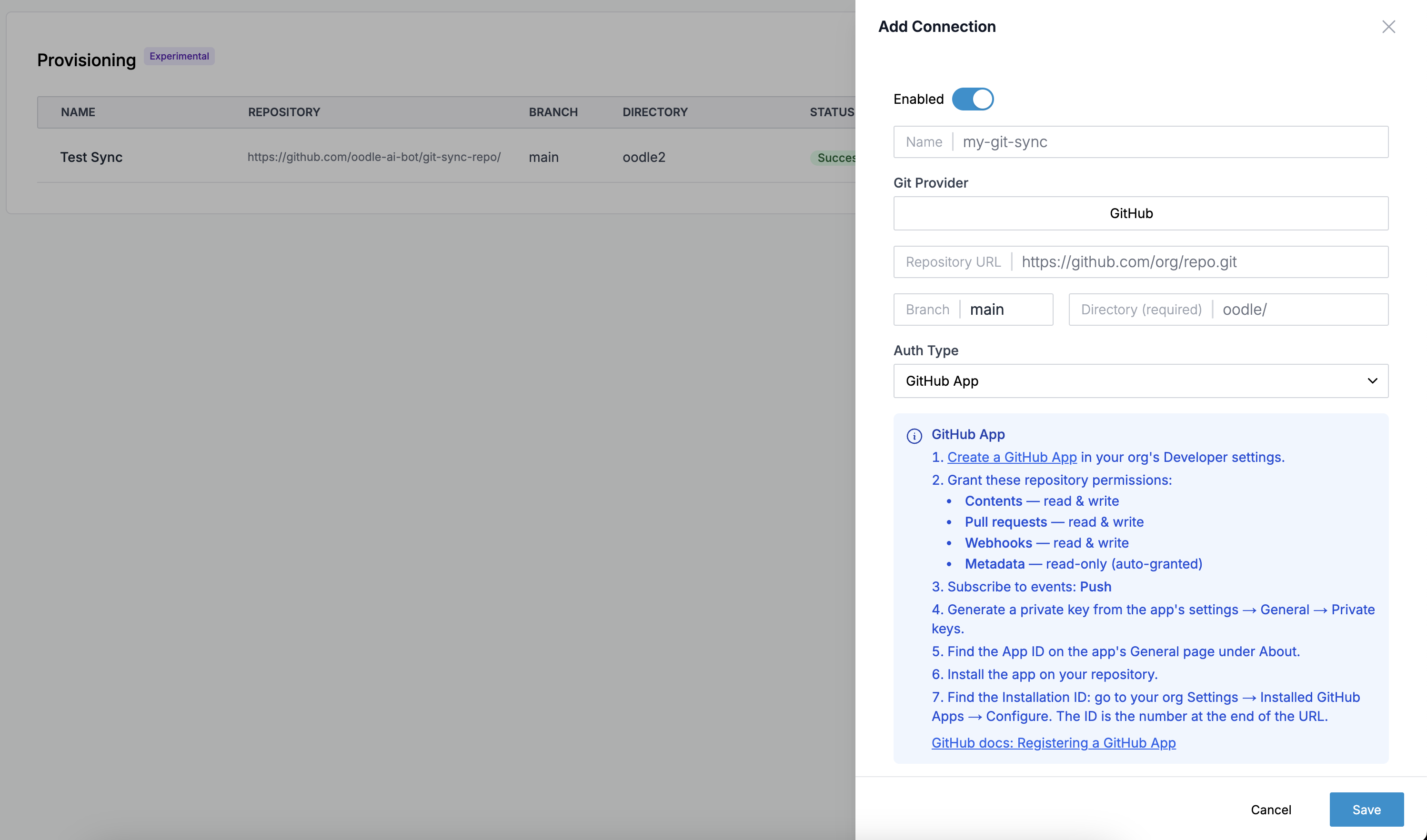

Setting Up a Connection

Navigate to Settings → Provisioning in the sidebar and click Add Connection.

Step 1: Basic Configuration

• Name: A descriptive name for this connection
• Git Provider: Currently GitHub is supported
• Repository URL: The HTTPS URL of your Git repository (e.g. https://github.com/org/repo.git)
• Branch: The branch to sync with (default: main)
• Directory: The subdirectory within the repository where resources are stored (required)

Step 2: Authentication

Choose one of two authentication methods:

Personal Access Token (PAT)

Create a fine-grained PAT scoped to your repository with these permissions:

• Contents — read & write
• Pull requests — read & write
• Webhooks — read & write
• Metadata — read-only (auto-granted)

GitHub App

For organization repositories, you can use a GitHub App:

1. Create a GitHub App in your organization settings
2. Note the App ID from the app's General page
3. Install the app on the repository and note the Installation ID from the URL
4. Generate a private key and paste it in the configuration
5. Grant the app these permissions:
   • Contents — read & write
   • Pull requests — read & write
   • Metadata — read-only

When using a GitHub App, webhooks are always enabled for real-time sync.

Step 3: Resource Selection

Select which resource types to sync. By default, all supported types are selected. You can deselect types you don't want to manage via Git.

Step 4: Webhook (Optional)

Enable the webhook toggle to receive real-time sync triggers when changes are pushed to your repository. Without webhooks, sync relies on the polling interval.

For PAT connections, this is optional. For GitHub App connections, webhooks are always enabled.

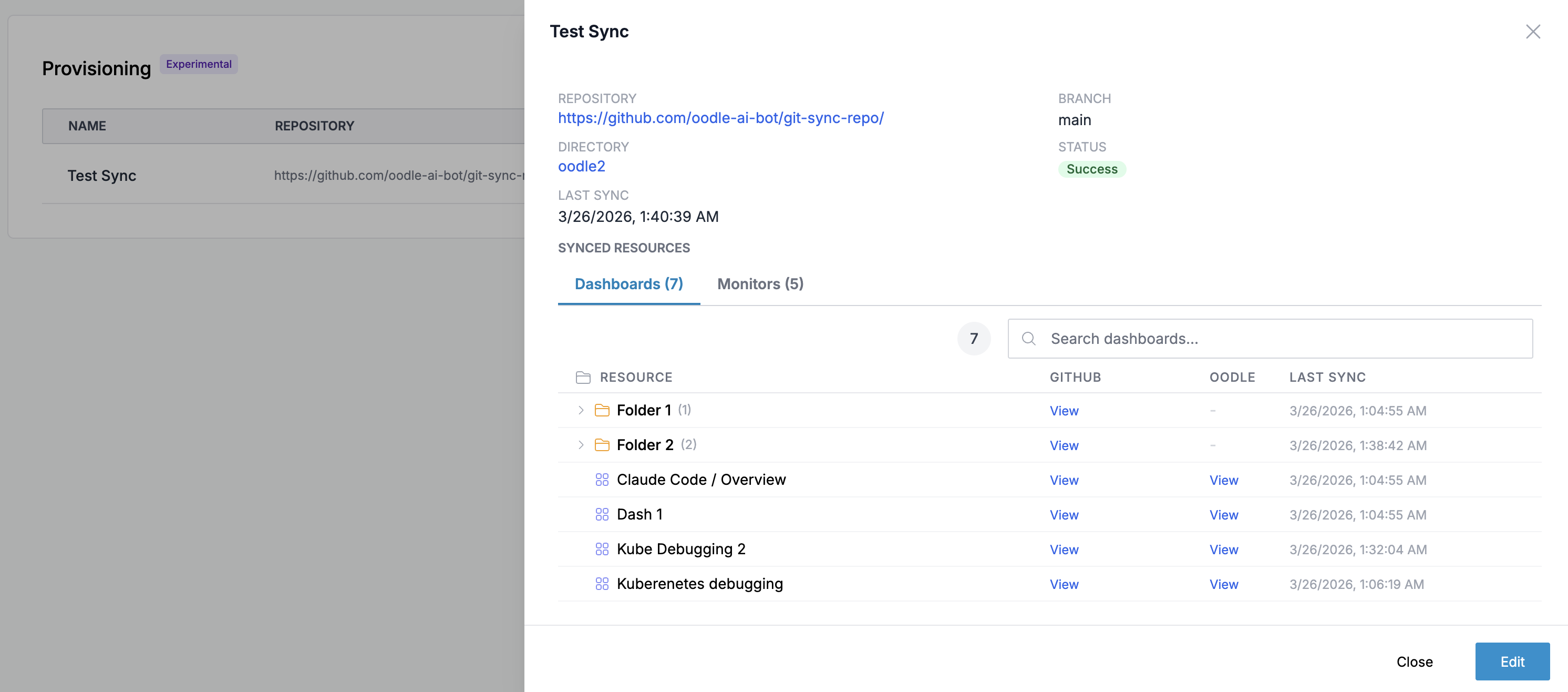

Viewing Sync Status

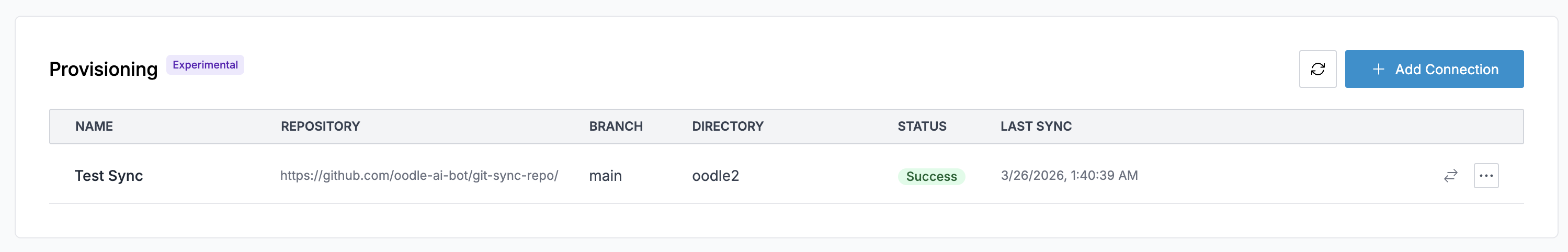

Click on any connection in the Provisioning table to open the detail drawer.

This shows:

• Repository and branch (clickable links to GitHub)
• Directory path
• Sync status — success, partial, or error
• Last sync time

Resource Details

The detail drawer contains tabs for each synced resource type. Each tab shows:

• Total resource count
• Per-resource links to both GitHub (the JSON file) and Oodle (the resource in the UI)
• Last sync time per resource

For dashboards, resources are displayed in a folder tree that mirrors the Grafana folder hierarchy. Expand folders to see individual dashboards.

If any resources failed to sync, a red badge shows the failure count.

Sync Behavior

Conflict Resolution

• If a resource is modified in both Oodle and Git between sync cycles, the most recent change wins.
• Newly created resources that haven't been synced yet are protected from deletion for 24 hours.

Deletes

• When a resource is deleted in Oodle, the corresponding file is moved to a deleted/ folder in the repository (rather than permanently removed) and garbage-collected after one week.
• When a file is removed from Git, the resource is deleted from Oodle on the next sync.
• Safety guard: if all resources of a given type would be deleted, the delete operation is skipped to prevent accidental mass deletion.

Filtered Resources

Dashboards tagged with oodle-generated are excluded from sync. These are system-generated dashboards that should not be version-controlled.

Managing Connections

Editing

Click the ⋯ menu on a connection row and select Edit, or click Edit in the detail drawer. You can change the branch, directory, resource types, webhook settings, and authentication credentials.

Triggering a Manual Sync

Click the sync icon (↔) on a connection row to trigger an immediate sync outside the regular polling interval.

Disabling

Toggle the Enabled switch in the edit drawer to pause syncing without deleting the connection. Disabled connections show a gray indicator in the table.

Deleting

Click the ⋯ menu and select Delete to permanently remove a connection. This does not delete any resources from Oodle or files from Git.

Best Practices

Use a Dedicated Directory

Always use a dedicated subdirectory (e.g. oodle/) rather than the repository root. This keeps Oodle resources organized and avoids conflicts with other files.

Start with a Subset

When setting up git sync for the first time, start with one or two resource types to verify the sync behavior before enabling all types.

Review Changes in Git

Since all changes are committed to Git with descriptive messages, you can use standard Git tools (git log, git diff, pull request reviews) to audit what changed and when.

Use Branch Protection

For production environments, consider using branch protection rules on your sync branch to require PR reviews before changes are merged — giving your team a review step before Git changes reach Oodle.
